OpenID Connect (OIDC) flow

🎯 Purpose

Provides step-by-step integration guide for connecting client/integrator/enterprise/Relying Party (RP) login pages with REL-ID Web Authentication OpenID Connect flow.

Client/Integrator/Enterprise/RP Login Integration

🎯 Integration Process

Modify the RP's login page Sign/Log In button/link to redirect to REL-ID Web Authentication Server's Authorization Endpoint with necessary parameters.

📋 Implementation Steps

• Identify Login Button: Locate existing Sign In / Log In button or link\
• Update URL: Change button/link URL to point to REL-ID Authorization Endpoint
• Add Parameters: Include required OAuth2/OIDC parameters in URL
• Test Integration: Verify redirection works correctly

🌐 Authorization Endpoint

• URI Pattern: https://<AUTH-SERVER-HNIP>:8006/relid/authserver/oauth/authorize\
• Method: GET request via browser redirect
• Parameters: Include client_id, response_type, scope, state, redirect_uri

📚 Reference Documentation

• Detailed Information: REL-ID AuthServer Documentation\
• Section: Authorization Endpoint
• URI: https://<AUTH-SERVER-HNIP>:8006/relid/authserver/oauth/authorize

Exchanging Authorization Code for Access Token

Exchanging Authorization code for access token follows the below steps:

🔄 Exchange Process Steps

📨 Receive Authorization Code

• User Redirect: User's browser redirected to registered redirect URI
• Authorization Code: Code included as URL parameter
• Target: RP server's endpoint (registered redirect URI)

🔍 Extract Authorization Code

• Server Processing: RP server reads Authorization Code from URL parameter
• Parameter Name: Typically 'code' parameter
• Validation: Verify code format and presence

** 🔄 Exchange Code for Token**

• API Call: RP server sends Authorization Code to Web Authentication server
• Endpoint: Access token endpoint
• Response: Receive Access Token (and optionally ID token)

** 🎯 Token Usage**

• User Identification: Use received tokens to identify user
• JWT Decoding: Access token is JWT - decode to get user information
• Claim Extraction: Extract user ID from "username" claim

📊 Token Information

🔓 JWT Claims Example

Example decoded access token JWT claims for user ID "testuser":

{
  "aud": [
    "OIDC"
  ],
  "username": "testuser",
  "scope": [
    "all",
    "openid"
  ],
  "exp": 1676635702,
  "authorities": [
    "ROLE_USER"
  ],
  "jti": "c71cf1ba-43d2-4baf-9b34-7750958c972a",
  "client_id": "Y2MwYzVkNWEtY2Q0YS00N2QxLThjNWQtNWFjZDRhYTdkMWQx"
}

👤 Alternative User Info Access

• User Info Endpoint: Alternative method to obtain user ID\
• Usage: Send access token to user info endpoint
• Response: User information in JSON format

🌐 API Endpoints

• Generate Access Token: https://<AUTH-SERVER-HNIP>:8006/relid/authserver/oauth/token\
• User Info: https://<AUTH-SERVER-HNIP>:8006/relid/authserver/oauth/userinfo

📚 Reference Documentation

• Detailed Information: REL-ID AuthServer Documentation\
• Sections: Generate Access Token, User Info endpoints

🎯 Complete OIDC Integration Example

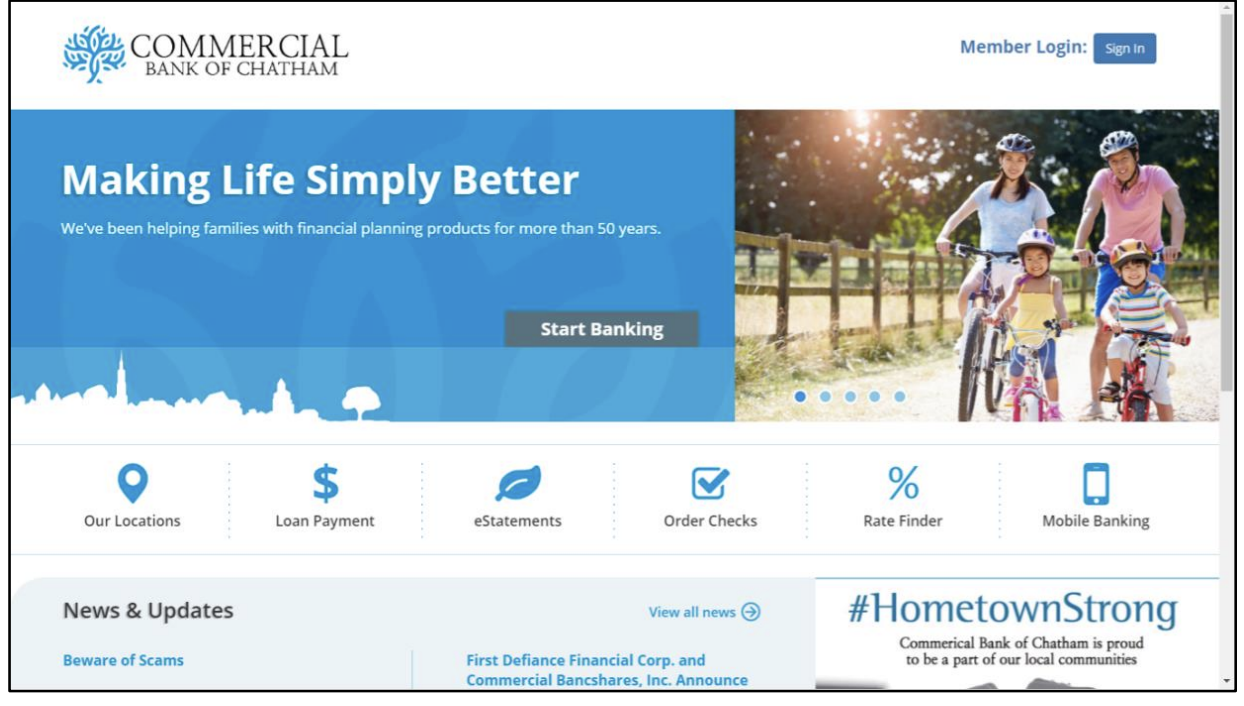

Comprehensive example showing Commercial Bank of Chatham's integration with REL-ID AuthServer OIDC login flow.

🔄 Integration Steps

1. 🏪 Commercial Bank Setup

• Organization: Commercial Bank of Chatham\
• Integration: Sign In integrated with REL-ID AuthServer OIDC login flow
• Objective: Replace existing login with REL-ID authentication

2. 🔗 Login Button Integration

Original Button: Standard HTML login button
Updated Code: Modified to use Web Authentication server's Authorization endpoint

<a href="https://auth.relid.com:8006/relid/authserver/oauth/authorize?client_id=CHATHAM_BANK_CLIENT_ID&response_type=code&scope=all+openid&state=12345&redirect_uri=https://chathambank.uniken.com/callback">Sign In</a>

3. 📨 Authorization Code Receipt

• Callback URL: https://chathambank.uniken.com/callback?code=JBwzTL&state=12345\

• Components:

• Base URL: https://chathambank.uniken.com/callback (registered redirect URI)

• Authorization Code: JBwzTL

• State Parameter: 12345 (for CSRF protection)

4. 🔄 Token Exchange

• Process: Chatham Bank application exchanges authorization code JBwzTL\
• Goal: Obtain access token using Access Token endpoint
• Method: Server-to-server API call

📋 URL Parameters Explained

📚 Reference Documentation

• Token Exchange Details: REL-ID AuthServer Documentation\
• Section: Generate Access Token (using Authorization Code)
• URI: https://<AUTH-SERVER-HNIP>:8006/relid/authserver/oauth/token
